Which Heat Pump Option Is Right for My Home?

Pinterest LinkedIn Tumblr +

I’ve heard that a heat pump can be a good alternative for heating my home, but it looks like there are several types available. Can you explain a few of the most common options? — Brett

Dear Brett: I think it’s a good idea to consider a heat pump for your home. The technology has improved a lot over the past 10–20 years and is likely to be at least 20 percent more efficient than what you have now. Heat pumps can also cool your home during summer months, which is an added value!

Newer models of heat pumps can operate effectively in subzero weather, but sometimes they do so by switching to electric resistance mode, which is much less efficient. In a colder climate, it may be worth investing in a dual fuel system where propane or another fuel provides supplemental heat on extremely cold days.

Here are a few situations where you might use the different types of air-source heat pumps:

1. Ducted heat pump

If your home has a forced-air furnace, a centralized air-source heat pump can work well. A compressor outside your home that looks like an A/C unit is connected to your home’s existing duct system. Like your furnace, the temperature is controlled through one main thermostat. This is a solid solution if your system has quality ductwork that heats and cools every room evenly, which is rare.

Ductwork in most homes is not designed to heat or cool every room evenly. Long supply runs provide little air to some rooms, and it’s typical for some rooms to lack return air registers. Also, ductwork is often leaky, which creates comfort issues. If leaky ducts are located in unheated areas such as crawl spaces or attics, it will increase your heating and cooling costs. Poor ductwork will render any kind of central heating or cooling system much less effective. Some HVAC contractors can repair ductwork problems if the ductwork is accessible.

Heat pumps vary in efficiency, and this is measured in two ways. The Heating Seasonal Performance Factor (HSPF) measures heating efficiency, and the Seasonal Energy Efficiency Ratio (SEER) measures cooling efficiency. The minimum ratings for new heat pumps are HSPF 8.2 and SEER 14. Heat pumps with the Energy Star rating are significantly more efficient than the minimum standard. The quality of the installation also matters, and some contractors will have more experience and training than others.

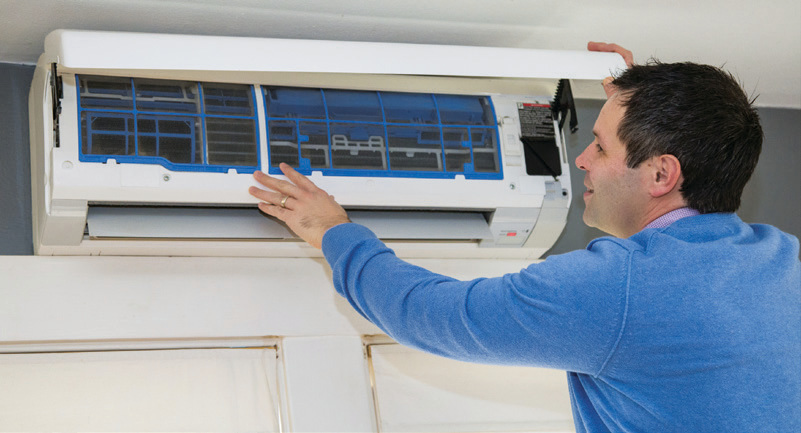

A homeowner shows off his energy-efficient ductless heat pump.

2. Minisplit heat pump

If your home does not have ductwork or the ductwork is poorly designed or leaky, a ductless minisplit heat pump might be your best bet. With a minisplit heat pump, tubes connected to the outside compressor carry refriger ant to one or more air handlers, which are mounted high on a wall to distribute air. Thermostats regulate each air handler, providing control of different zones in the home.

In climates that don’t experience extreme cold, a ductless heat pump could supply all the heating and cooling in a small home. They are often used in combination with a central heating and cooling system. A ductless minisplit is an excellent option if you don’t have central air ducts, your ducts are leaking or you only want the new ductless heat pump to heat or cool part of the home.

3. Geothermal (or ground-source) heat pump

Several feet underground, the temperature remains constant year-round, typically between 45 degrees and 75 degrees, depending on latitude. Heat is transferred into or out of the ground by pipes buried in a loop 10 feet underground or drilled up to 400 feet into the earth. The pipes carry water to a compressor, which uses a refrigerant to transfer the heat to or from your home’s ducts.

A geothermal heat pump system is extremely energy efficient since the earth’s temperature is warmer than the outside air in the winter and cooler than the outside air in the summer. But note that this efficiency comes with a high price tag, which is the initial cost to install the pipe loop or drill the hole for a vertical pipe.

This information should provide a good starting point in your research of heat pumps. Check with your local electric co-op for additional information and guidance. If you have a qualified energy auditor in your area, an audit could be a great next step, especially if it includes a duct leakage test. Then you’ll be ready to reach out to contractors and request a few quotes. Good luck!
